Double Column Gantry Metal Band Saw Machine

Double Column Gantry Metal Band Saw Machine
  • Double Column Gantry Metal Band Saw Machine
  • Double Column Gantry Metal Band Saw Machine
  • Double Column Gantry Metal Band Saw Machine
  • Double Column Gantry Metal Band Saw Machine

Double Column Gantry Metal Band Saw Machine

The Double Column Gantry Metal Band Saw Machine is built for cutting large and heavy metal workpieces. Its robust gantry-style structure ensures exceptional rigidity, accommodating high lateral forces and reducing vibrations during operation.

Equipped with high-precision linear guide rails, the machine delivers cutting accuracy, ensuring tight tolerances and smooth finishes. The dual hydraulic cylinder control system facilitates steady and controlled feed rates, enhancing the quality of each cut and extending the lifespan of the saw blade.

The hydraulic platform feeding mechanism allows for efficient material handling, reducing manual labor and increasing throughput. For enhanced operational flexibility, optional features such as hydraulic blade tensioning, overload protection, and automatic chip removal systems can be integrated, tailored to specific customer requirements.

Inquiry
PREV：Large Gantry Structural Metal Cutting Band Saw MachineNEXT：Energy Saving Double Column Horizontal Metal Band Saw
TYPE Cutting Capacity (mm) Blade Speed (m/min) Saw Size (mm) Main Motor Output (kW) Motor Hydraulic(kW) Coolant Pump (kW) Working Clamping Band Tensioning Main Drive Workpiece Feeding Size of Outert (L×W×H)

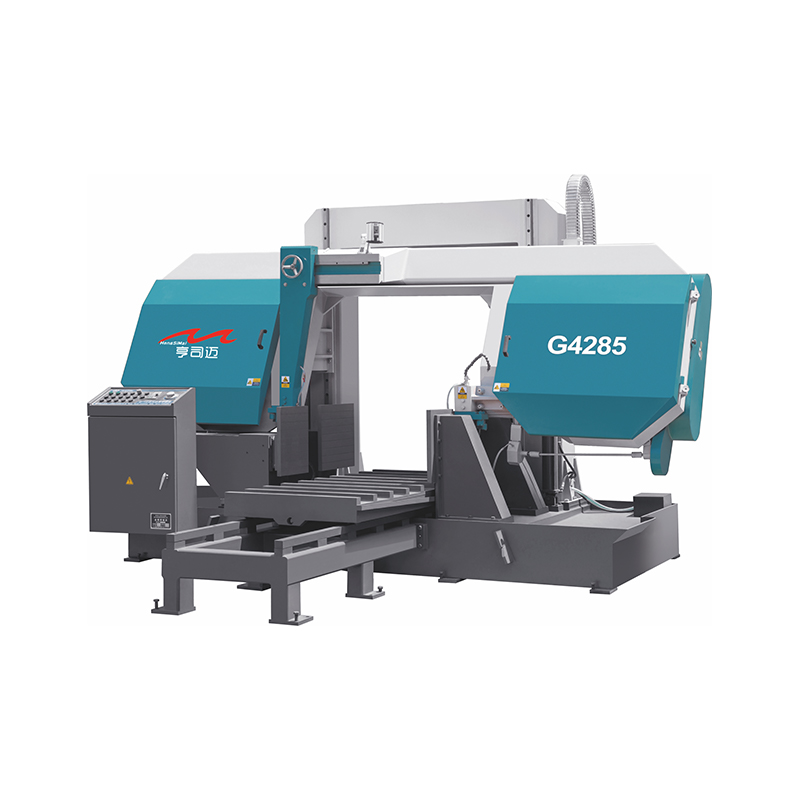

G4285 Φ850 20 - 80 67×1.6×8920 7.5(6P) 2.25(4P) 0.09 Hydraulic clamping Hydraulic Worm drive Hydraulic table 4230×3900×2600
850W×800H
G4265 Φ650 20/40/65 54×1.6×7000 5.5(6P) 1.5(4P) 0.09 Hydraulic clamping Hydraulic Worm drive Hydraulic table 3270×2540×2160
650×650

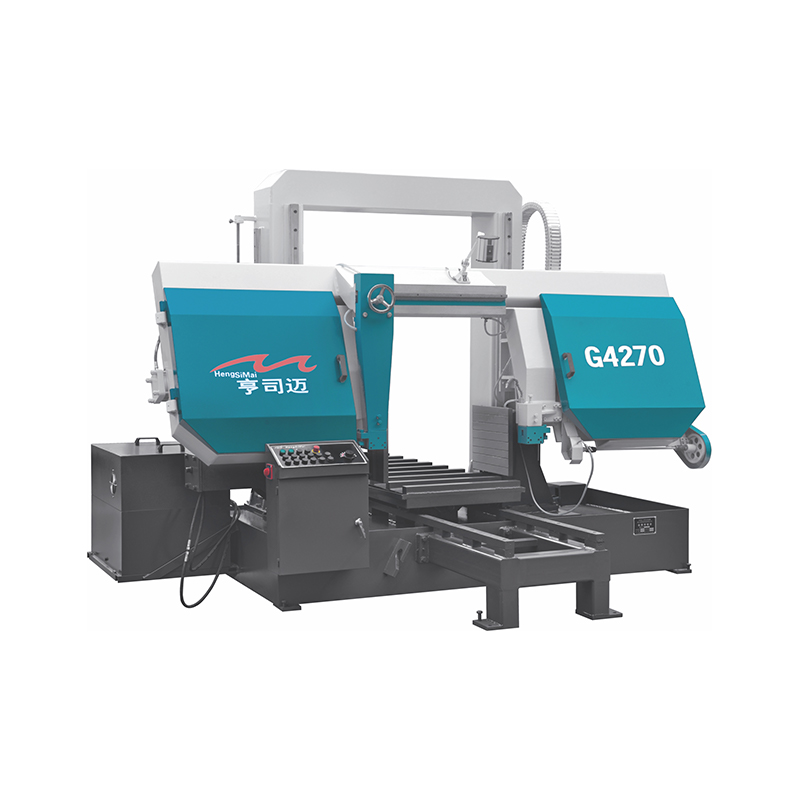

G4270 Φ700 20/40/65 54×1.6×7000 5.5(6P) 1.5(4P) 0.09 Hydraulic clamping Hydraulic Worm drive Hydraulic table 3270×2540×2160
700×700
G42120 Φ1200 20 - 80 67×1.6×10800 15(6P) 3.75 0.12 Hydraulic clamping Hydraulic Worm drive Hydraulic table 4835×4300×3340
1200W×1200H

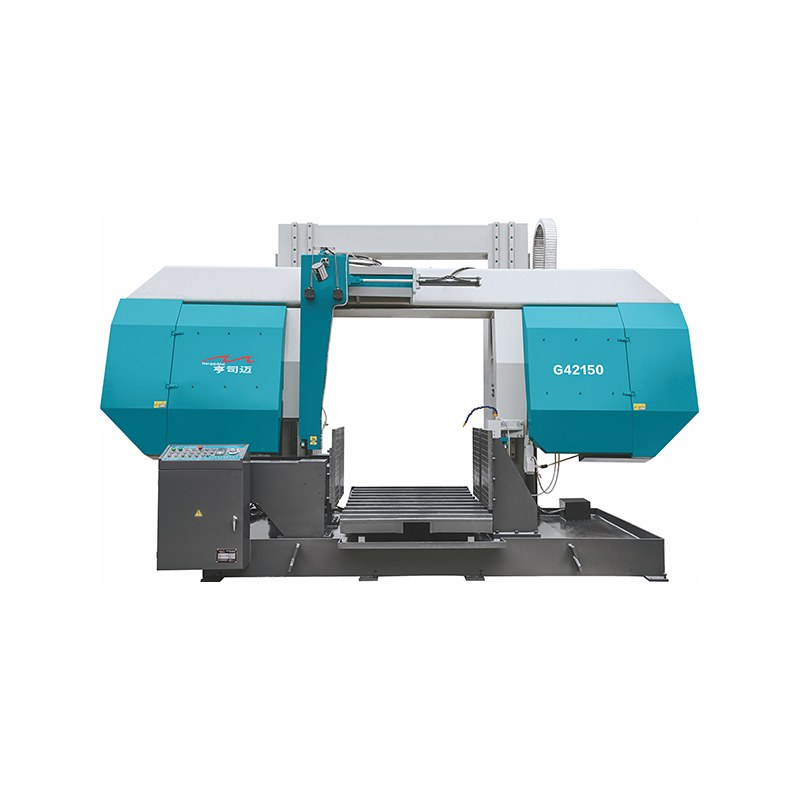

G42150 Φ1500 10 - 50 80×1.6×14900 22(4P) 5.5(4P) 0.125 Hydraulic clamping Hydraulic Gear drive Hydraulic table 6500×2300×4800
1500W×1500H
G42160 Φ1600 10 - 50 (stepless) 80×1.6×16150 22(4P) 5.5(4P) 0.125 Hydraulic clamping Hydraulic Gear drive Hydraulic table 6800×2300×4900
1600W×1600H
G42180 Φ1800 10 - 50 (stepless) 80×1.6×17000 27(4P) 7.5(4P) 0.25 Hydraulic clamping Hydraulic Gear drive Hydraulic table 6800×4000×4100
1800W×1800H
