Vertical Band Saw Machine

  • Semi-Automatic Vertical Band Saw Machine

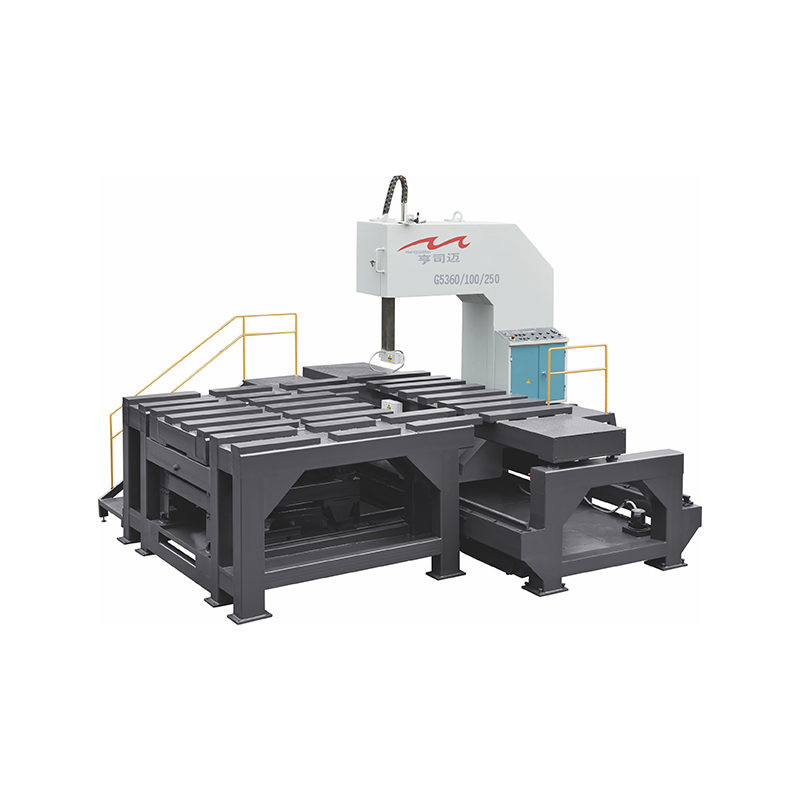

    Semi-Automatic Vertical Band Saw Machine
    Semi-Automatic Vertical Band Saw Machine

    Semi-Automatic Vertical Band Saw Machine

    Parameter:

    The Semi-Automatic Vertical Band Saw Machine is built for precision and efficiency in metalworking applications. Its innovative design features a cantilevered structure, ensuring stability and reducing vibration during operation. The machine is equipped with a PLC-based control system and a user-friendly HMI interface, allowing operators to monitor and adjust settings intuitively.

    The saw head is hydraulically adjustable, enabling accurate miter cuts up to 60° in both directions. An inverter-controlled drive system offers variable blade speeds, accommodating a wide range of materials and thicknesses. The feed mechanism utilizes a servo-driven system with infinitely variable speed control, ensuring consistent cutting performance.

    For enhanced cutting accuracy, the machine includes a laser line positioning system and optional mechanical length stop devices. Hydraulic clamping systems are available to secure workpieces firmly, reducing setup time and improving safety. Additional features such as automatic chip removal and coolant systems are available to maintain optimal cutting conditions and prolong tool life.

    Semi-Automatic Vertical Band Saw Machine
    Semi-Automatic Vertical Band Saw Machine
    Contact Us
  • Vertical Band Saw for Cutting Big Materials

    Vertical Band Saw for Cutting Big Materials
    Vertical Band Saw for Cutting Big Materials

    Vertical Band Saw for Cutting Big Materials

    Parameter:

    The Vertical Band Saw for Cutting Big Materials is specially designed for high-precision, heavy-duty applications, offering distinct advantages over traditional horizontal models.

    Robust Structural Design
    Featuring a three-wheel configuration, this saw provides exceptional stability and rigidity, ensuring accurate cuts in large, dense materials. The robust construction minimizes vibrations, enhancing cutting precision and extending blade life.

    Advanced Control Systems
    Equipped with a PLC-based control unit and a high-performance human-machine interface (HMI), the system allows for intuitive operation and real-time monitoring.

    Variable Speed and Servo-Driven Feed
    The saw offers stepless speed control (or frequency-controlled speed adjustment) via a servo-driven feed system, accommodating a wide range of materials and thicknesses. Cutting speeds range from 1 to 80 mm/min, providing versatility for different cutting requirements.

    High-Torque Transmission
    Utilizing a helical gear reducer, the saw delivers high torque at low speeds, ensuring stable operation and effective cutting of tough materials like Inconel or titanium.

    Optional Accessories for Enhanced Efficiency
    The saw can be equipped with a laser line locator for precise alignment and an optional mechanical length stop for accurate measurements. Additionally, hydraulic clamping devices and automatic chip removal systems can be integrated to improve productivity and reduce manual handling.

    Vertical Band Saw for Cutting Big Materials
    Contact Us
  • Heavy-duty Vertical Metal Saw Cutting Machine

    Heavy-duty Vertical Metal Saw Cutting Machine
    Heavy-duty Vertical Metal Saw Cutting Machine

    Heavy-duty Vertical Metal Saw Cutting Machine

    Parameter:

    This vertical metal sawing machine is designed for precision, durability, and versatility in industrial metalworking applications. By selecting a model that aligns with specific operational requirements, businesses can enhance productivity and achieve superior cutting results.

    Key Features:
    Robust Construction: Built with a heavy-duty welded steel frame, these machines minimize vibration, ensuring clean and accurate cuts even under continuous operation.
    Variable Speed Control: Equipped with variable speed drives, they allow operators to adjust cutting speeds to match material types and thicknesses, optimizing blade life and cutting efficiency.
    Advanced Blade Management: Some models include integrated blade welders, grinders, and shears, facilitating in-house blade maintenance and reducing downtime.
    Precision and Automation: High-end models feature automatic feeding systems, servo-driven material handling, and miter cutting capabilities, ensuring consistent quality and reducing manual labor.

    Heavy-duty Vertical Metal Saw Cutting Machine
    Contact Us
  • Metal Plate Vertical Band Saw Machine

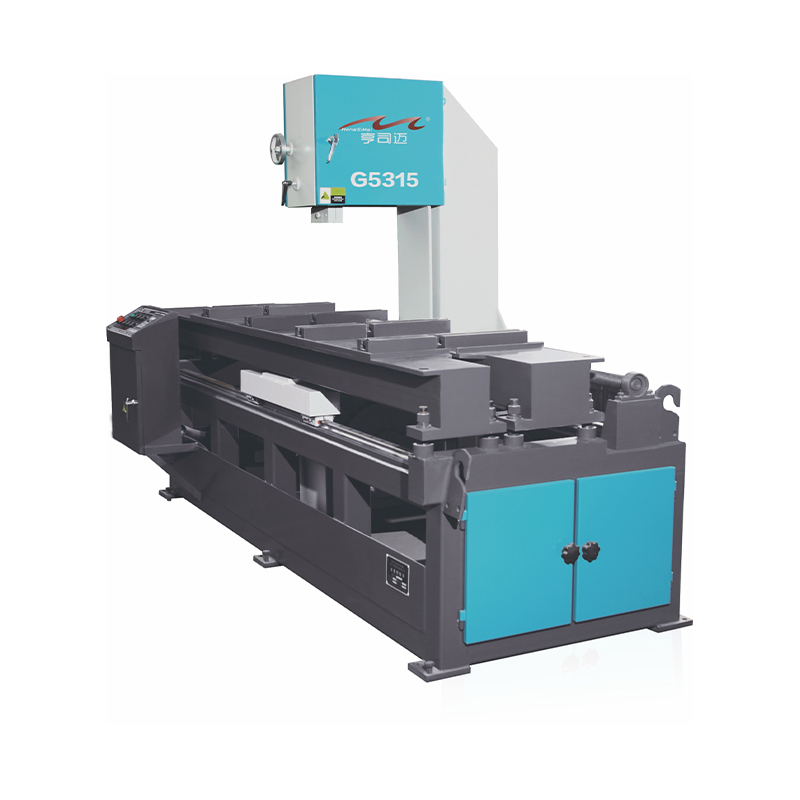

    Metal Plate Vertical Band Saw Machine
    Metal Plate Vertical Band Saw Machine

    Metal Plate Vertical Band Saw Machine

    Parameter:

    Designed for heavy-duty applications, this vertical band saw machine stands out for its robust construction, advanced features, and user-centric design, making it a valuable asset for any industrial cutting operation.

    The centralized control panel on the saw frame allows operators to manage all functions from a single location, enhancing workflow and reducing setup time.

    Equipped with a reliable variable-speed transmission system, this machine ensures smooth operation and consistent performance, even under heavy loads. The adjustable speed settings accommodate a wide range of materials and cutting requirements, providing versatility in various production environments.

    The user-friendly clamping system simplifies the workpiece setup process, allowing for quick and secure positioning. This feature not only improves efficiency but also enhances safety by reducing the risk of errors during operation.

    Metal Plate Vertical Band Saw Machine
    Metal Plate Vertical Band Saw Machine
    Contact Us
  • Vertical Band Saw for Metal Steel Plate Sheet Cutting

    Vertical Band Saw for Metal Steel Plate Sheet Cutting
    Vertical Band Saw for Metal Steel Plate Sheet Cutting

    Vertical Band Saw for Metal Steel Plate Sheet Cutting

    Parameter:

    The Vertical Band Saw for Metal Steel Plate Sheet Cutting is engineered for precision and efficiency in industrial metalworking applications. Its compact scissor-frame design minimizes floor space while maintaining robust structural integrity. The centralized control panel on the saw frame ensures intuitive operation, enhancing user experience.

    Equipped with a stepless mechanical main drive, the saw offers variable feed speeds ranging from 1 to 120 mm/min, allowing for stable low-speed performance. The main drive system utilizes a variable-speed mechanism, ensuring reliable performance and smooth operation. The upper guide arm is electrically controlled, facilitating convenient adjustments. Additionally, the machine features a laser line locator for precise alignment of the cutting path, complemented by a mechanical stop for consistent measurements.

    Workpiece clamping is straightforward, and the machine is designed with safety in mind. Both the worktable and control console are equipped with ladders, and protective railings surround the worktable to safeguard operators.

    Vertical Band Saw for Metal Steel Plate Sheet Cutting
    Contact Us

Vertical band saw machines are versatile cutting tools commonly used for contour cutting, shaping, and machining irregular workpieces. Unlike horizontal machines, the vertical design allows greater flexibility for handling a wide range of materials and geometries. These machines are widely used in workshops that require cutting of curves, slots, or custom shapes in addition to straight cuts.

The vertical band saw provides steady performance for both metals and non-metals, making it suitable for fabrication, maintenance, and tool-making applications. Many models are equipped with tilting tables and adjustable blade guides to enhance precision and adaptability. The machine’s compact footprint also makes it practical for smaller workshops with limited space. Vertical band saw machines are known for their versatility, enabling businesses to expand their cutting capabilities without requiring multiple types of equipment.

About Us
Zhejiang Hengsimai Intelligent Machinery Co., Ltd.
With over 30 years of expertise, HENGSIMAI Intelligent Machinery stands as a leading manufacturer of intelligent metal sawing equipment in China. From design and R&D to production and service, the company integrates innovation, precision, and reliability into every machine. Committed to advancing intelligent sawing technology and global manufacturing standards, HENGSIMAI continues to shape the future of metal cutting with efficiency and trust.
Manufacturing Excellence:
Over 30,000㎡ modern facility equipped with advanced CNC centers, laser systems, and robotic welding lines, ensuring precision and consistency.
Intelligent Innovation:
Pioneering in intelligent CNC and automated sawing systems, driving the industry toward smarter, more efficient solutions.
Global Reach:
Over 150 branches across China and exports to 20+ countries worldwide, earning international trust and recognition.
Vision & Values:
Driven by innovation, integrity, and collaboration, HENGSIMAI strives to set new benchmarks in intelligent sawing technology.
Certificate of Honour
News & Blogs
Industry knowledge

A vertical band saw machine is a commonly used metalworking equipment, widely applied in factory workshops, mechanical manufacturing, and metal cutting fields. It has a compact structure and flexible operation, capable of performing various complex cutting tasks. Especially when processing large-sized or thick plate materials, the heavy-duty vertical band saw machine demonstrates its advantages in stability and high efficiency.

Structure of a Vertical Band Saw Machine

A vertical band saw machine mainly consists of the following parts:

  • Saw frame and machine body: Provides overall support and ensures the stable operation of the saw blade. The machine body of a heavy-duty vertical band saw machine is usually made of high-strength steel, capable of withstanding large cutting forces.
  • Saw blade and guiding system: The saw blade cuts along a fixed track, and the guiding device ensures that the saw blade does not deviate, ensuring cutting accuracy.
  • Motor and transmission system: Provides power to the saw blade. The transmission method can be belt drive or gear drive, and the appropriate power and speed are selected according to the cutting requirements.
  • Worktable and clamping device: The worktable can be adjusted in angle to achieve bevel cutting or curve cutting, and the clamping device fixes the workpiece to ensure safe operation.
  • Cooling system: When cutting metal materials, coolant is used to reduce the temperature of the saw blade and workpiece, extending the saw blade life and improving cutting quality.

Through these components, the vertical band saw machine can achieve precise cutting on metal materials of different thicknesses and hardness. Vertical metal band saws are particularly suitable for cutting steel, aluminum, and other metal profiles.

Main Features of a Vertical Band Saw Machine

The advantages of a vertical band saw machine are reflected not only in processing efficiency but also in ease of operation and adaptability. The main features are as follows:

  • High cutting accuracy: Thanks to the guiding system and stable saw frame, the cutting size error is small, suitable for precision machining.
  • Compact structure: Small footprint, suitable for workshops with limited space.
  • Flexible operation: The worktable can be adjusted in angle, suitable for various cutting methods, including straight cutting and curve cutting.
  • Wide range of applicable materials: Can process metal materials of different hardness and thickness.
  • Easy maintenance: The saw blade is easy to replace, and some models are equipped with an automatic tensioning device, reducing manual operation.

In addition, the heavy-duty vertical band saw machine performs particularly well when processing thick plates and large workpieces, and its design takes into account both durability and high-load working capacity.

Applications of Vertical Metal Band Saws

Due to their versatility and cutting stability, Vertical Metal Band Saws are widely used in the following applications:

  • Mechanical Manufacturing: Used for cutting steel, aluminum, copper, and other materials for parts processing.
  • Construction Engineering: Cutting profiles and steel plates for building structure fabrication.
  • Automotive Manufacturing: Cutting pipes and frame materials to meet the production needs of various parts.
  • Mold Manufacturing: Precision cutting of metal blocks for subsequent processing.
  • Repair and Custom Machining: Suitable for workshops to cut or modify materials on demand.

Vertical Metal Band Saws are suitable not only for industrial mass production but also for small workshops or repair shops for single-piece or small-batch cutting.

Example Technical Parameters of a Vertical Band Saw Machine

The table below lists the technical parameters of a typical Heavy Duty Vertical Band Saw Machine for reference:

Parameter Description
Saw Blade Length 3500 mm
Saw Blade Width 13–41 mm
Big Cutting Thickness 300 mm
Big Worktable Tilt Angle 45°
Motor Power 3 kW
Cutting Speed ​​Range 20–120 m/min
Cooling Method Water cooling/Oil cooling
Machine Weight 800 kg

These parameters show that the Heavy Duty Vertical Band Saw Machine maintains stability and precision even under high-load cutting, making it suitable for various industrial applications.

Operation and Maintenance Key Points

To ensure the long-term stable operation of the vertical band saw machine, the following operation and maintenance points should be noted:

Daily Inspection:

  • Check if the saw blade is worn or loose.
  • Check if the guiding system is well lubricated.
  • Confirm that the coolant is sufficient and the flow rate is normal.

Correct Operation:

  • Select the appropriate cutting speed according to the material thickness.
  • Use clamps to fix the workpiece to prevent slipping during cutting.
  • Avoid excessive force and maintain smooth operation of the saw blade.

Regular Maintenance:

  • Regularly replace the saw blade or sharpen the saw teeth.
  • Check the drive belt or gears to ensure smooth operation of the transmission system.
  • Clean up cutting debris to prevent clogging of the cooling system.

Safety Precautions:

  • Operators must wear protective gloves and safety glasses.
  • Keep the operating area clean to prevent tripping or injury from chips.
  • Through standardized operation and maintenance, the service life and cutting accuracy of the Vertical Metal Band Saw can be effectively guaranteed.

Purchasing Advice

When selecting a vertical band saw machine, the following factors should be considered:

  • Type of material to be processed: Choose the saw blade material and machine model based on the type of metal to be processed.
  • Cutting thickness and dimensions: Ensure the machine's cutting capacity meets production needs.
  • Power and speed: Motor power determines processing efficiency, and the cutting speed should be adjustable.
  • Working environment: Consider the required floor space and cooling system needs.
  • Ease of maintenance: Easy replacement of saw blades and convenient daily maintenance.

Summary of key purchasing points:

  • Robust and durable machine structure
  • Saw blade specifications match the processing material
  • Motor power and speed range meet requirements
  • Complete safety protection devices
  • Reasonably designed cooling system

Vertical band saw machines, with their compact structure, flexible operation, and high cutting precision, are important equipment in the metal processing field. Heavy Duty Vertical Band Saw Machines excel in high-load, high-precision cutting, while Vertical Metal Band Saws are suitable for a variety of metal materials and processing needs.
